Conductive flooring
![Image for slide 1 Image for slide 1](images/lesson3_conductive_flooring_1.jpg)

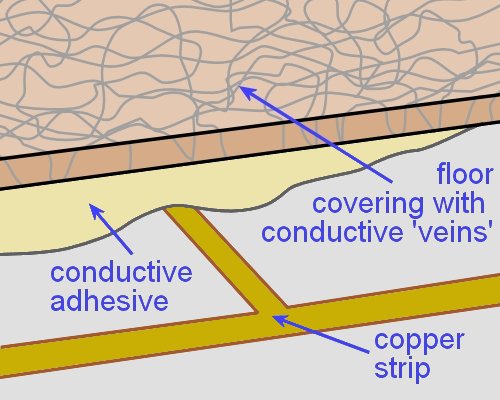

As we discussed earlier (in 'Static electricity in floors'), conductive floors have a low electrical resistance.
This is achieved through adding thousands of tiny conductive fibres or 'veins' into the tile or sheet product.
Depending on the brand of flooring, these conductive fibres or chips could be made of carbon, graphite, metal, or a combination of materials.
The structure of the resilient product is homogeneous, to ensure that the fibres are evenly distributed throughout.
This is achieved through adding thousands of tiny conductive fibres or 'veins' into the tile or sheet product.
Depending on the brand of flooring, these conductive fibres or chips could be made of carbon, graphite, metal, or a combination of materials.
The structure of the resilient product is homogeneous, to ensure that the fibres are evenly distributed throughout.
![hearing icon](../../shared/images/hear.png)
![Image for slide 3 Image for slide 3](images/lesson3_conductive_flooring_3.jpg)

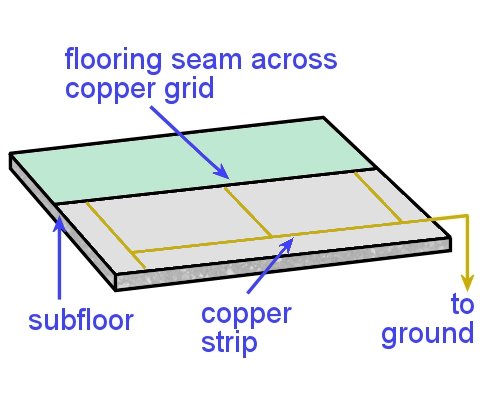

Here is the general procedure.
- Apply a primer to the floor with a brush or roller. Depending on the manufacturer and the size of the floor area, you may need to use a conductive primer.
- Stick down the copper strip in the grid pattern specified by the manufacturer, and run it across to the earthing point on the wall.
- Use a conductive adhesive to stick down the flooring, and roll the floor with an appropriate sized roller.
- Check the electrical conductivity, and organise for a licensed electrician to earth the connection.
![hearing icon](../../shared/images/hear.png)
Go to Assignment
